Technical Specifications:
Type of cutting table: Standing-type
Cutting Width: 1200 mm / 1500 mm
Min cutting height: >50 mm / >=30~50
Placing Type: Side wise & Banded Placed
Productivity: 2200-2600 M2/h
Matched diesel Power: 12~20 HP
Teeth Space: 127 mm
Running speed of crank: 55 r/min
Diameter of star wheel: 280 mm
Working speed: 2.6 – 3.6 km/h
Chain speed: 2.24 m/s
Number of operator: 1
Overall dimensions: L 2200 x W 1600 x H 1100 mm
Total weight: 215 KG / 230 KG

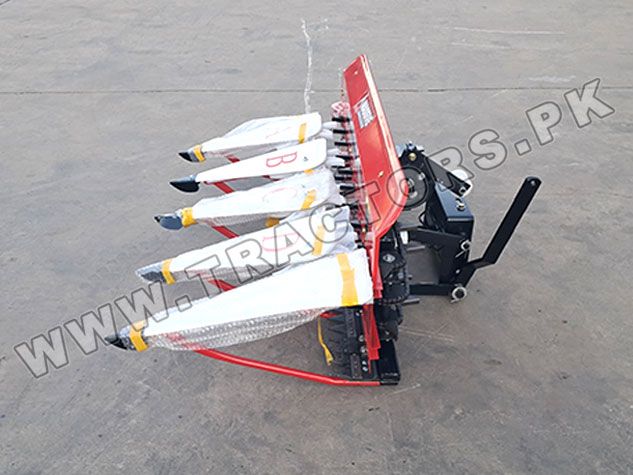

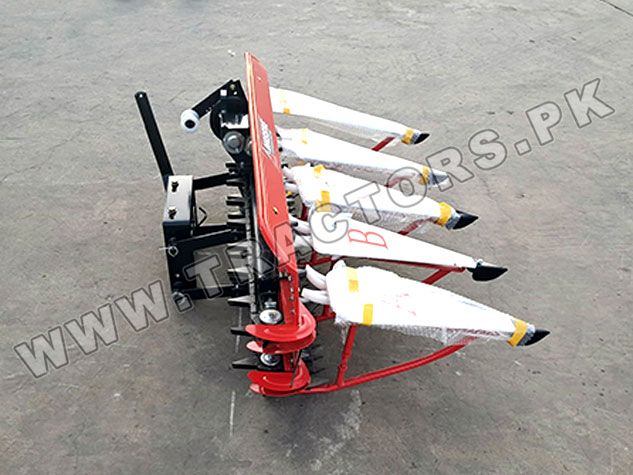

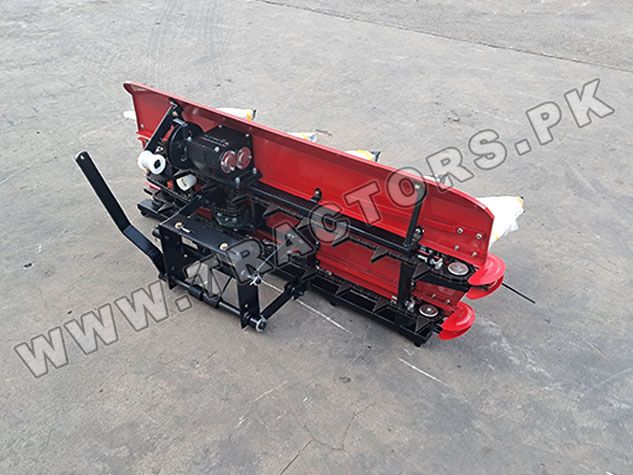

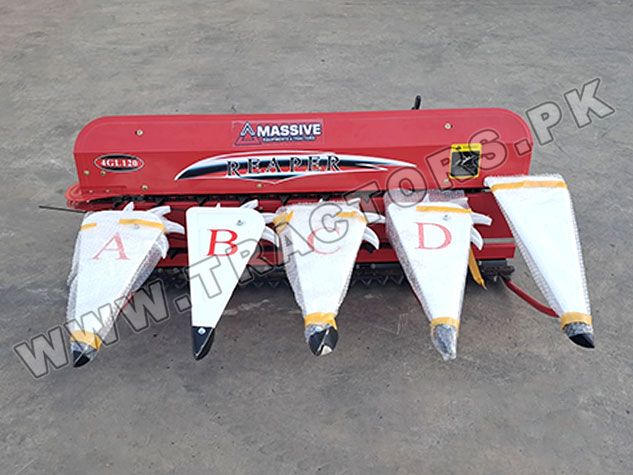

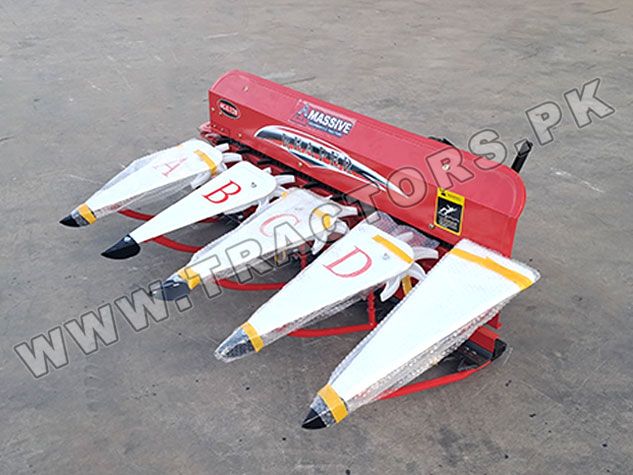

Reaper was specially designed for power tiller. It is featured by its simple and compact structure, good reliability, long service life, easy operation, light weight and high cutting efficiency. It is very suitable for working in wheat & rice field.
Advantage:
